Panoramic padel courts

Concrete foundation for a padel court

A high-quality padel court must be installed on a properly prepared concrete foundation, as this is the only way to ensure the overall stability and long-term durability of the structure. The dimensions of the concrete foundation for one padel court are 20.8 m in length x 10.8 m in width.

The concrete layer must be at least 15 cm thick, and the foundation must be reinforced with steel bars measuring 1.2 cm in diameter. The spacing between the reinforcement bars must be 25 cm.

After the concrete works are completed, professional construction specialists must inspect the foundation to ensure that it is level and meets all installation requirements.

Mesh manufacturing, welding and finish

All technical parameters comply with GB15065-94 and IE60502 standards, and the water absorption rate is 0%.

The mesh is manufactured from individually welded monofilaments, which gives the structure greater strength and impact resistance. Each wire mesh segment is welded individually (1:1), ensuring a precise and solid structure and increased resistance to mechanical loads.

All welding points are ground and rounded, so there are no protruding or sharp elements and there is no risk of scratches during play. After shot blasting, the mesh surface is coated with high-quality zinc powder, ensuring better coating adhesion, a smoother surface, and a higher aesthetic standard.

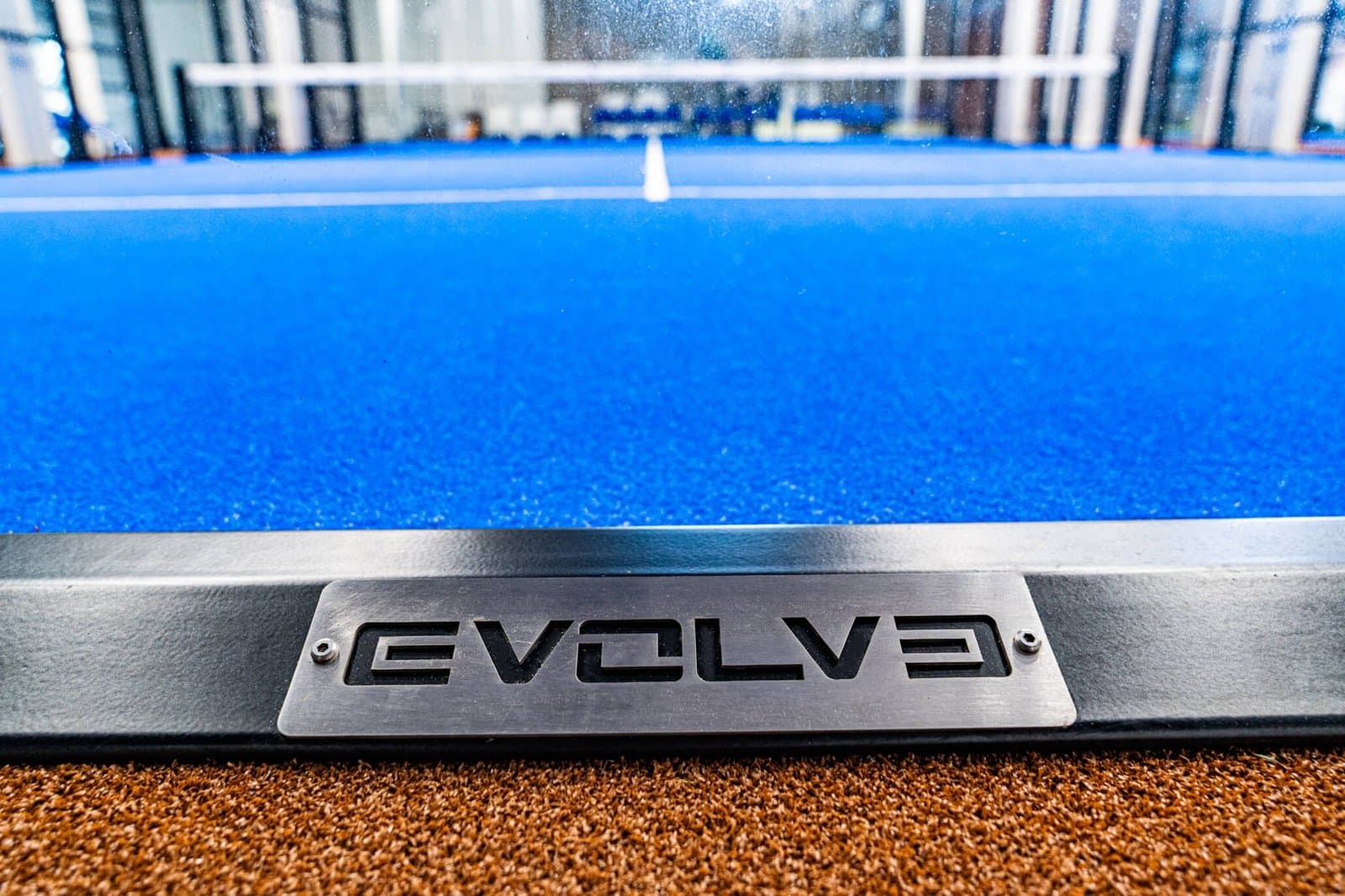

Bolts and accessories

304 stainless steel

Rust-free throughout the entire service life, which ensures long-term reliability and resistance to environmental impact.

High strength and resistance to deformation for reliable fixing even under heavy loads, with an aesthetic appearance that gives the finished structure a neat and professional finish.

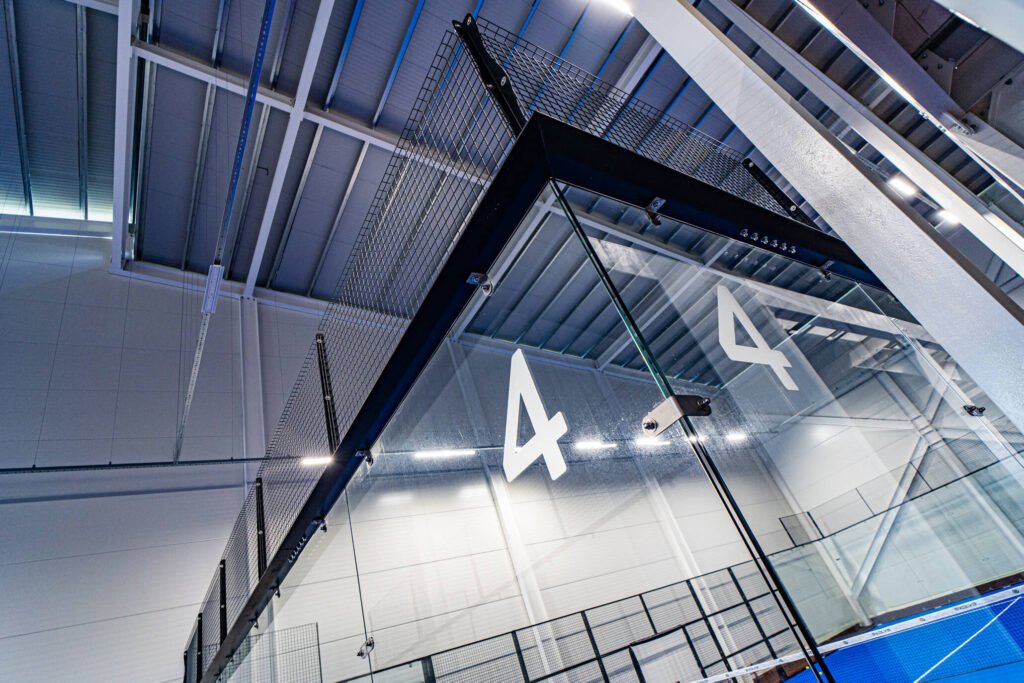

Tempered glass with 8 countersunk holes

Compliant with the European standard EN 12150-1 and certified with the CE mark. The set includes 18 glass panels, each measuring 2995 x 1995 mm.

The production process uses the highest-quality tempered float glass, and quality control is carried out at every stage of manufacturing. The glass features perfectly polished edges and precisely finished countersunk holes, with no scratches or chips on the surface.

These solutions not only provide an aesthetic appearance, but also further increase the strength of the tempered glass.

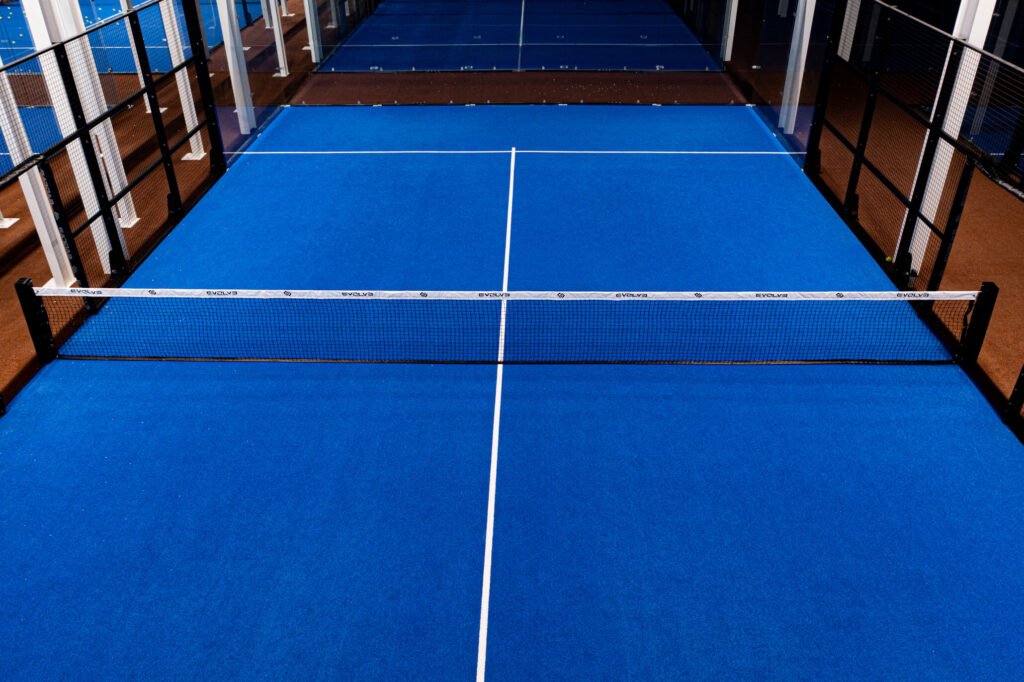

Artificial turf

High linear-density PE fibres with woven-in lines

Material: high linear-density PE plastic granules. Fiber thickness (DTEX): 10,000 – strong and durable fibers. Density: 58,800 stitches / m2 – an even and dense surface for intensive use.

Premium-quality turf backing: PP + PP + SBR (3 layers) ensures stability and long-term durability, with an integrated double-layer twill-woven base fabric. High tear resistance and excellent durability make it suitable for professional sports use, with a reduced risk of wrinkling so the surface stays smooth and neat.

White lines are woven directly into the entire turf structure, so no additional gluing or manual joining is required. The turf is installed directly on the padel court, which can reduce installation time by approximately 3 days.

Cutting, drilling and processing

All components are processed using CNC intelligent digital machinery.

High dimensional accuracy means parts are manufactured strictly according to technical drawing requirements, with no dimensional deviations, which optimizes assembly on site: installation time and costs are reduced by up to 35%.

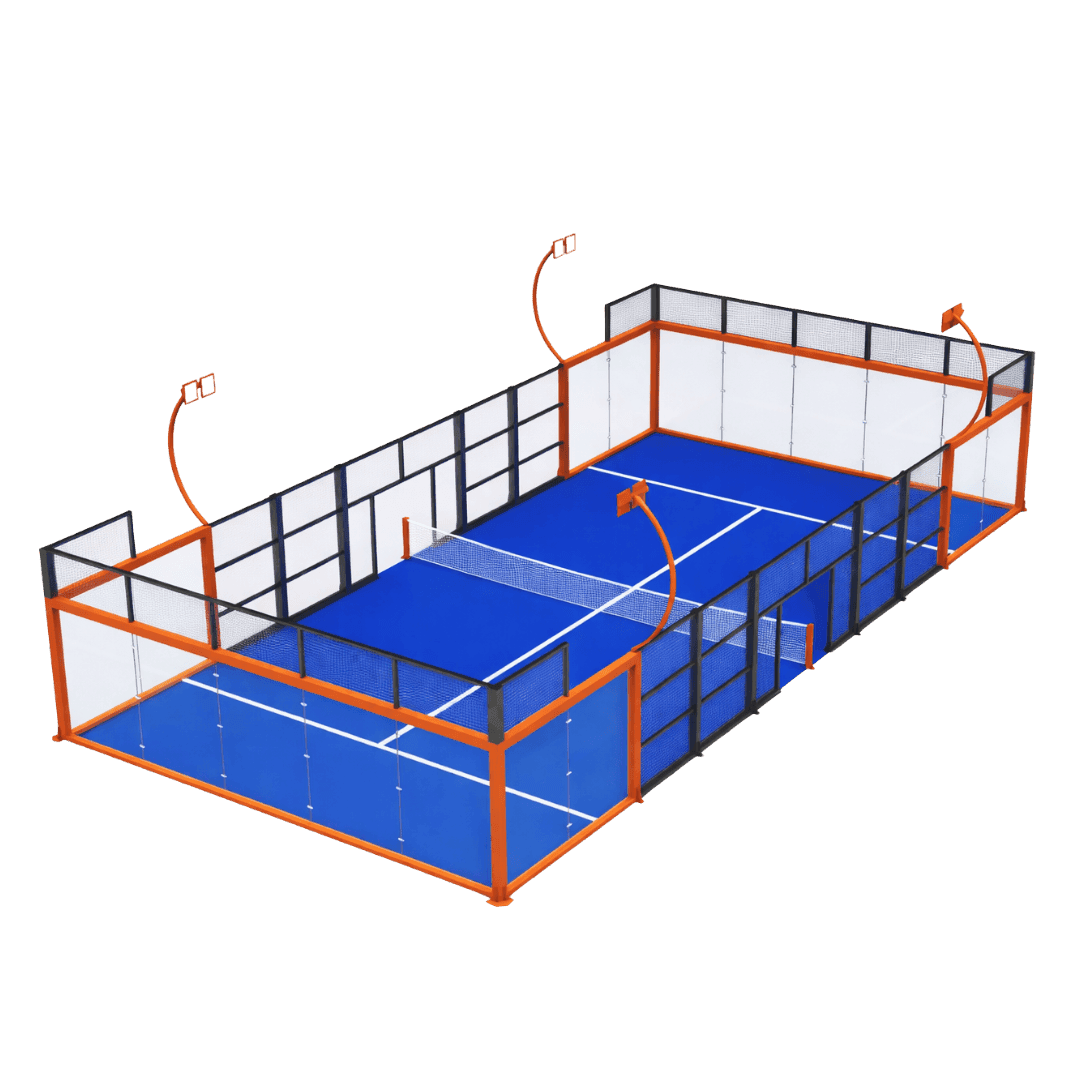

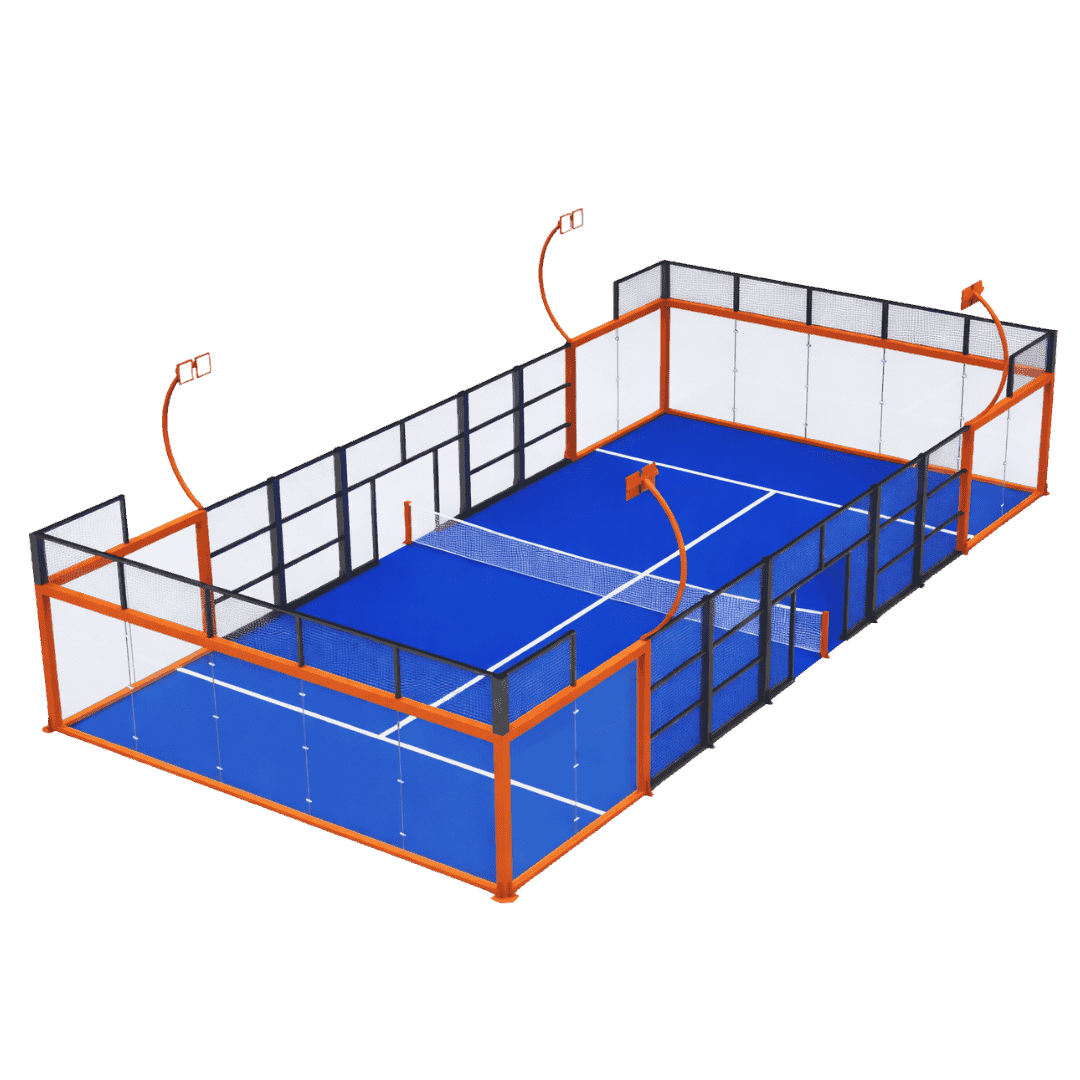

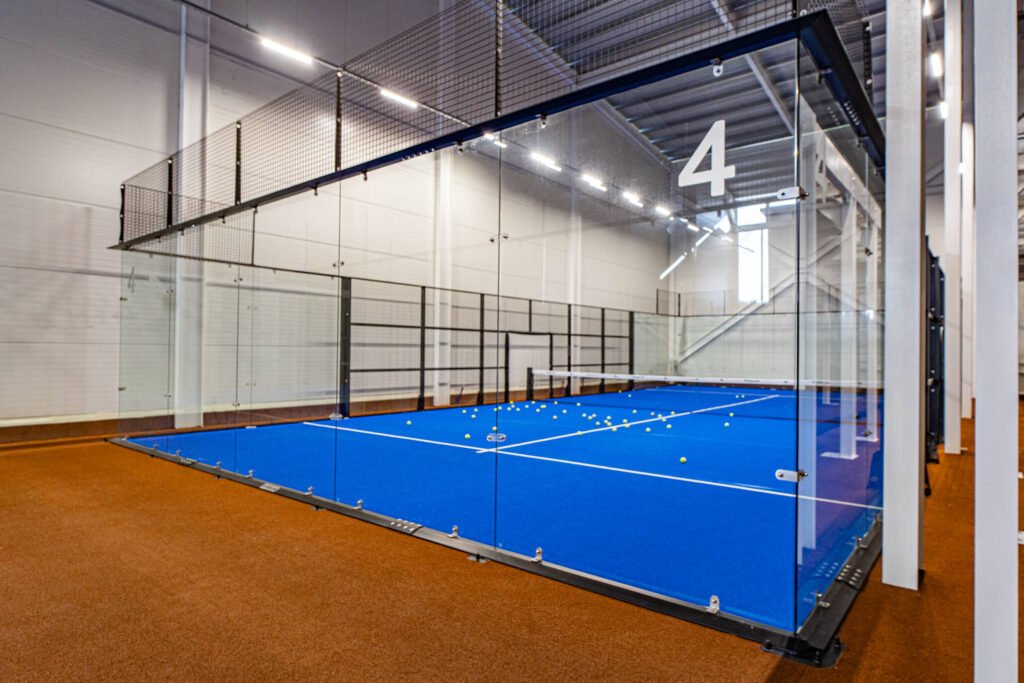

A clear view from every side

Because the panoramic layout places the combined double support columns at the corners, the long glass walls stay free of intermediate posts. The court reads as one continuous surface from the outside, which keeps the view clean for players, spectators and cameras alike.

The same configuration suits commercial padel clubs, hotels and resorts, municipal sports facilities and private installations, and several courts can be placed side by side on one site.
